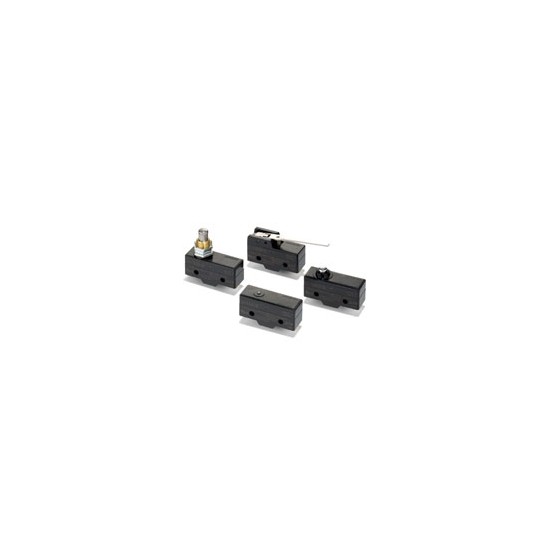

일반용 기본 스위치

일반용 기본 스위치 요약정보 및 구매

Z

▶ 차단용량이 15A로 크고, 높은 정밀도 (반복정도가 양호)
▶ 마이크로 스위치의 기본 타임이 있고 용도에 따라 기본형, 분할접촉형, 유지접촉형 등 풍부한 종류를 준비
▶ 기본형에는 미소부하용 시리즈화
▶ 단자부를 안전하게 보호하고 방적성을 가지는 방적 단자 보호 카바와 몰드 단자형도 준비

제조사 OMRON
판매가격 전화문의
배송비결제 주문시 결제

상품 상세설명



Dimensions

Mounting

Use M4 screws with plane washers and spring washers to mount the Switch. Tighten each mounting screw securely to a torque of 1.18 to 1.47 Nm.

Z_Mounting1

When mounting the Switch to a panel, use a tightening torque of 2.94 to 4.9 Nm for the hexagonal nuts on the actuator.

Z_Mounting2

Basic Models (General-purpose) and Split-contact Models

Terminals

Z_Terminals

Dimensions and Operating Characteristics

The models, illustrations, and graphics are for screw-terminal models (-B). The "-A" at the end of the model number for solder terminal models has been omitted. For details of the terminals, see above.

Pin Plunger
Z-15G-B
Z-15E-B
Z-15H2-B
Z-01H-B
Z-15H-B
Z-10FY-B

Z-15G-B_Dim

Slim Spring Plunger
Z-15GS-B
Z-01HS-B
Z-15HS-B
Z-10FSY-B

Z-15GS-B_Dim

Short Spring Plunger
Z-15GD-B
Z-01HD-B
Z-15HD-B
Z-10FDY-B
Z-15ED-B

Z-15GD-B_Dim

Panel Mount Plunger
Z-15GQ-B
Z-01HQ-B
Z-15HQ-B
Z-10FQY-B
Z-15EQ-B
Z-15GQ3-B *
Z-15GQ8-B *

Z-15GQ-B_Dim

Note:
1. Do not use the M12 mounting screw and the case mounting hole at the same time, or excessive pulling force will be imposed on the switch and the case and cover may be damaged.
2. On the model Z-15GQ3-B, PT can be set to a value larger than that for the Z-15GQ.
3. On the model Z-15GQ8-B, operating position can be adjusted by providing a
screw in the plunger section.
4. On the model Z-15GQ8-B, the M3 hole
with a depth of 10 mm is a through hole. Take precautions so that no water or screw lock agent penetrates into the hole.

Panel Mount Roller Plunger
Z-15GQ22-B
Z-15EQ22-B
Z-15HQ22-B
Z-10FQ22Y-B

Z-15GQ22-B_Dim

Panel Mount Cross Roller Plunger
Z-15GQ21-B
Z-15EQ21-B
Z-15HQ21-B

Z-15GQ21-B_Dim

Leaf Spring
Z-15GL-B

Z15GL-B_Dim

Roller Leaf Spring
Z-15GL2-B

Z-15GL2-B_Dim

Short Hinge Lever
Z-15GW21-B

Z-15GW21-B_Dim

Hinge Lever
Z-15GW-B
Z-15GW32-B
Z-15HW-B
Z-10FWY-B
Z-15GW3-B (Lever Length: 56R)*

Z-15GW-B_Dim

Low-force Hinge Lever
Z-15GW4-B

Z-15WG4-B_Dim

Z-15HW24-B

Z-15HW24-B_Dim

Low-force Wire Hinge Lever
Z-15HW52-B
Z-15HW78-B (Lever Length: 110R) *

Z-15HW52-B_Dim

Short Hinge Roller Lever
Z-15GW22-B
Z-01HW22-B
Z-15HW22-B
Z-10FW22Y-B
Z-15EW22-B
Z-15GW2-B *
Z-15HW2-B *
Z-10FW2Y-B *

Z-15GW22-B_Dim

Short Hinge Cross Roller Lever
Z-15GW49-B
Z-15GW54-B (Lever Length: 48.7R) *

Z-15GW49-B_Dim

Hinge Roller Lever
Z-15GW25-B

Z-15GW25-B_Dim

Unidirectional Short Hinge Roller Lever
Z-15GW2277-B

Z-15GW2277-B_Dim

Reverse Hinge Lever **
Z-15GM-B

Z-15GM-B_Dim

Reverse Short Hinge Roller Lever **
Z-15GM22-B
Z-10FM22Y-B

Z-15GM22-B_Dim

Reverse Hinge Roller Lever **
Z-15GM2-B

Z-15GM2-B_Dim

** The pin plungers of reverse-type models are continuously pressed by the actuator levers with compression coil springs and the pin plungers are freed by operating the levers. Reverse-type models are highly vibration- and shock-resistive because the pin plungers are normally pressed.

Basic Models (Drip-proof) without Terminal Protective Cover

Terminals

Z_Terminals

Note: With reverse action models (Z-15GM), the positions of NO and NC terminals are reversed.

The above illustration is for model without terminal protective cover.

Dimensions and Operating Characteristics

Pin Plunger
Z-15G55-B
Z-01H55-B

Z-15G55-B_Dim

Short Spring Plunger
Z-15GD55-B
Z-01HD55-B

Z-15GD55-B_Dim

Spring Plunger
Z-15GK55-B

Z-15GK55-B_Dim

Z-15GK355-B

Z-15GK355-B_Dim

Panel Mount Plunger
Z-15GQ55-B

Z-15GQ55-B_Dim

Panel Mount Roller Plunger
Z-15GQ2255-B

Z-15GQ2255_Dim

Panel Mount Cross Roller Plunger
Z-15GQ2155-B

Z-15GQ2155-B_Dim

Leaf Spring
Z-15GL55-B

Z-15GL55-B_Dim

Roller Leaf Spring
Z-15GL255-B

Z-15GL255-B_Dim

Short Hinge Lever
Z-15GW2155-B

Z-15GW2155-B_Dim

Long Hinge Lever
Z-15GW4455-B

Z-15GW4455-B_Dim

Hinge Lever
Z-15GW55-B

Z-15GW55-B_Dim

Short Hinge Roller Lever
Z-15GW2255-B
Z-01HW2255-B

Z-15GW2255-B_Dim

Hinge Roller Lever
Z-15GW255-B

Z-15GW255-B_Dim

Unidirectional Short Hinge Roller Lever
Z-15GW227755-B

Z-15GW227755-B_Dim

Reverse Hinge Lever *
Z-15GM55-B

Z-15GM55-B_Dim

Reverse Short Hinge Roller Lever *
Z-15GM2255-B

Z-15GM2255-B_Dim

Reverse Hinge Roller Lever *
Z-15GM255-B

Z-15GM255-B_Dim

* The pin plungers of reverse-type models are continuously pressed by the actuator levers with compression coil springs and the pin plungers are freed by operating the levers.

Flexible Rod (Coil Spring)
Z-15GNJ55-B

Z-15GNJ55-B_Dim

Flexible Rod (Steel Wire)
Z-15HNJS55-B

Z-15HNJS55-B_Dim

Basic Models (Drip-proof) with Terminal Protective Cover

Dimensions and Operating Characteristics

Pin Plunger
Z-15GA55-B5V

Z-15GA55-B5V_Dim

Z-15GK3A55-B5V

Z-15GK3A55-B5V_Dim

Panel Mount Plunger
Z-15GQA55-B5V

Z-15GQA55-B5V_Dim

Panel Mount Roller Plunger
Z-15GQ22A55-B5V

Z-15GQ22A55-B5V_Dim

Panel Mount Cross-roller Plunger
Z-15GQ21A55-B5V

Z-15GQ21A55-B5V_Dim

Long Hinge Lever
Z-15GW44A55-B5V

Z-15GW44A55-B5V_Dim

Hinge Lever
Z-15GWA55-B5V

Z-15GWA55-B5V_Dim

Short Hinge Roller Lever
Z-15GW22A55-B5V

Z-15GW22A55-B5V_Dim

Hinge Roller Lever
Z-15GW2A55-B5V

Z-15GW2A55-B5V_Dim

Unidirectional Short Hinge Roller Lever
Z-15GW2277A55-B5V

Z-15GW2277A55-B5V_Dim

Basic Models (Drop-proof) with Modeled terminals

Molded Terminals

L/R Type (The following illustration is the R type.)

Z-Molded Terminals1

D Type

Z-Molded Terminals2

Lead Wire Specifications

Z_Lead Wire Specifications

Note:
1. No models with molded terminals are approved by UL, CSA, or EN.
2. Molded terminals are not available on all models. Contact your OMRON representative for applicable products.

Maintained-contact Models

Dimensions and Operating Characteristics

Pin Plunger
Z-15ER

Z-15ER_Dim

Slim Spring Plunger
Z-15ESR

Z-15ESR_Dim

Hinge Lever
Z-15EWR

Z-15EWR_Dim
